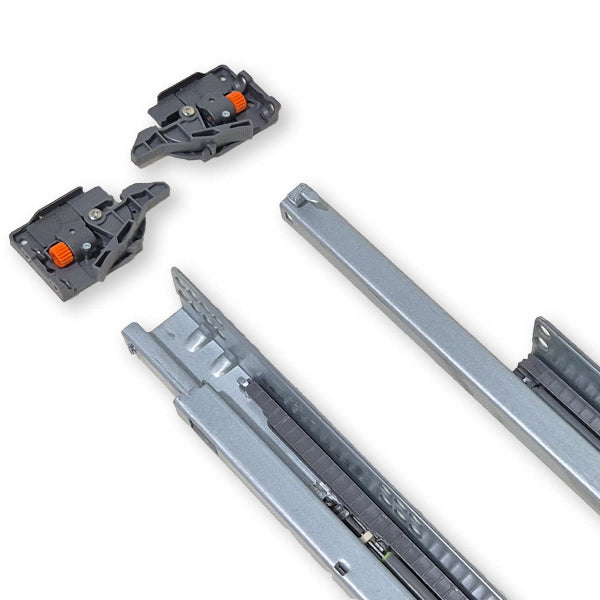

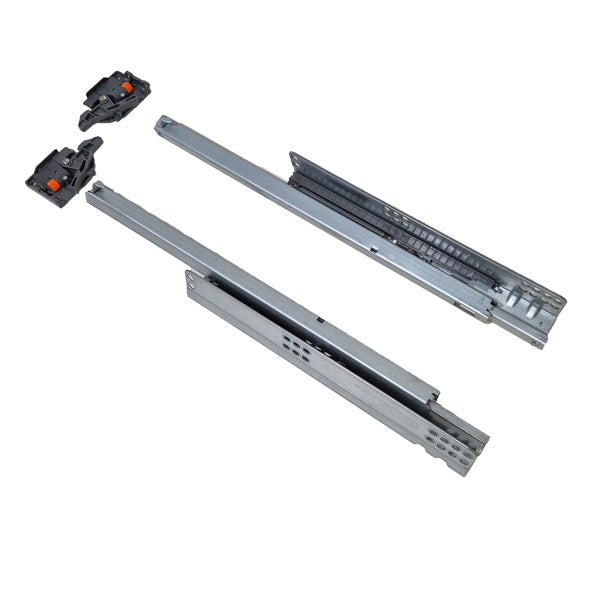

DTC - D Motion Undermount Drawer Slides

DTC - D Motion Undermount Drawer Slides

D-MOTlON is a strong foundation for drawers with a smooth running action and a stable, comfortable feel.

Smooth and Silent Soft-Close Motion

The full-extension components ride on nylon rollers providing a quiet gliding action. The soft-close damper devices slow the drawer to a controlled stop, even under heavy loads. Available in 40kg and 60kg capacity versions.

Easy Installation and Removal

Convenient, tool-free height, side and depth adjustment controls enable precise drawer front alignment. Drawer removal is easy with the comfortable release levers.

Abundant Options

Locking devices or pin mount, 16-19mmdrawer sides, soft-close or push-open and slide lengths for common applications. Virturally any cabinet or furniture situation can be accommodated.

Specification:

• Load Capacity 35kkg
• Finish Zink Planted
• length 250-600mm, full extension
• Silent system smooth run without noise
• 2D adjustment, up & down 0-3mm, side +/- 1.5mm
• 3D adjustment, up & down 0-3mm, side +/- 1.5mm, depth 0-3mm
• Maximum drawer side thickness 16mm
