ITALIANA - Kraby Drop Down (isi 2pcs)

ITALIANA - Kraby Drop Down (isi 2pcs)

Rp 747.400
Rp 747.400
Sale Sold out

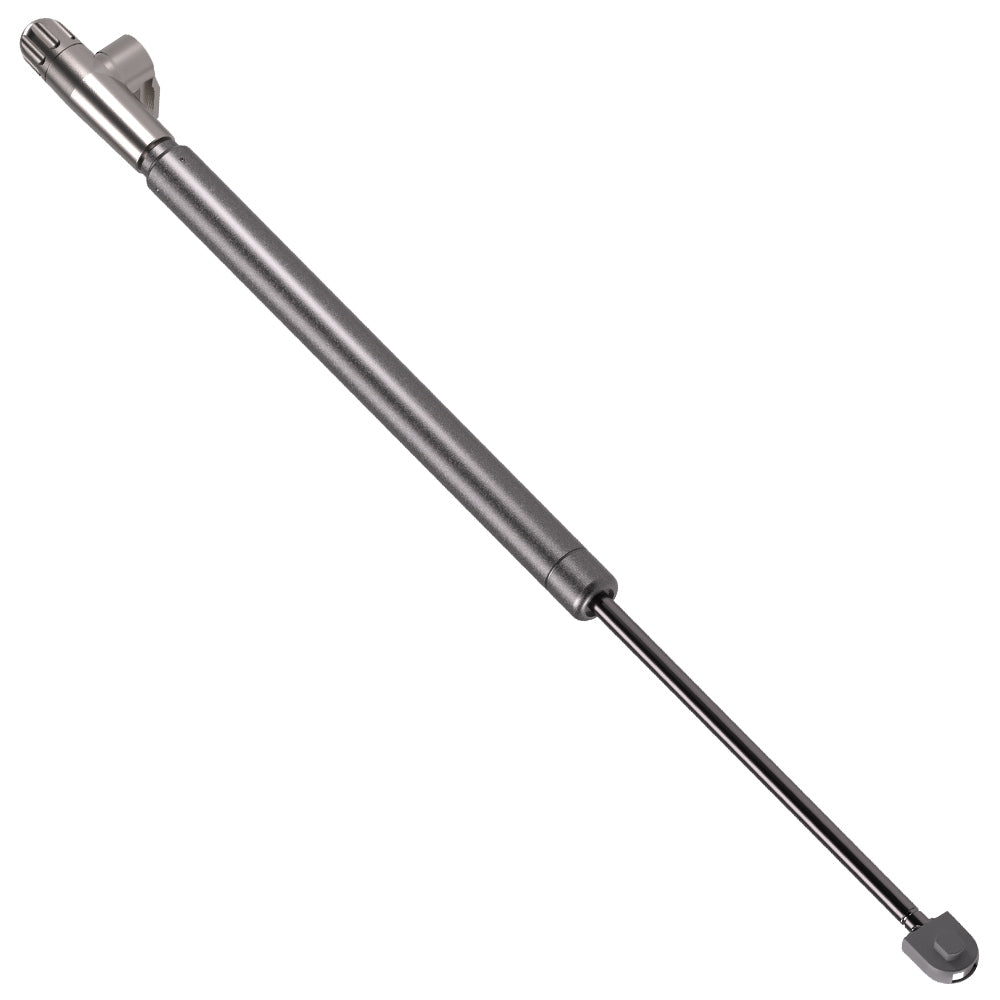

KRABY drop down stay (Stays)
Tokopedia

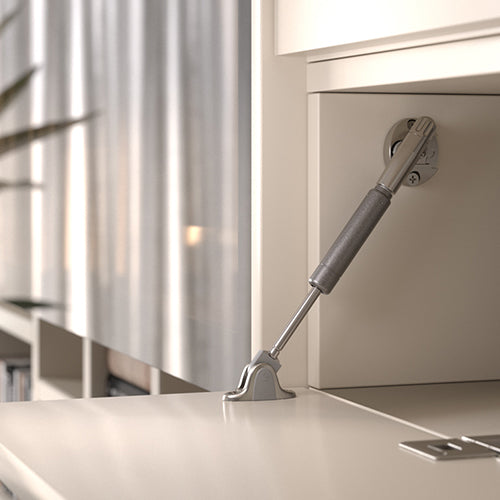

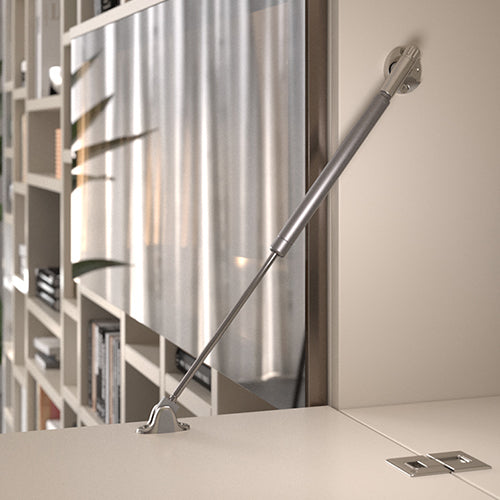

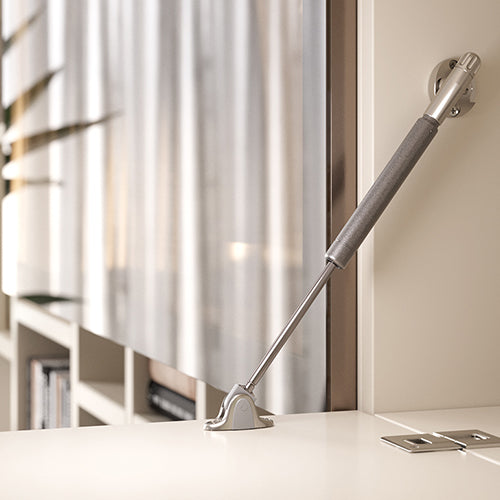

Kraby Drop Down

KRABY is an oil retainer for drop-down doors that can be installed using automated drilling. It has a universal design to adapt to any door size and weight, with adjustable opening angles and easy installation.

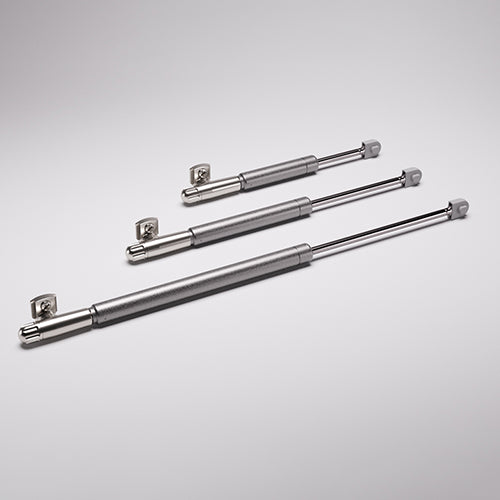

Kraby Drop Down is available on three size:

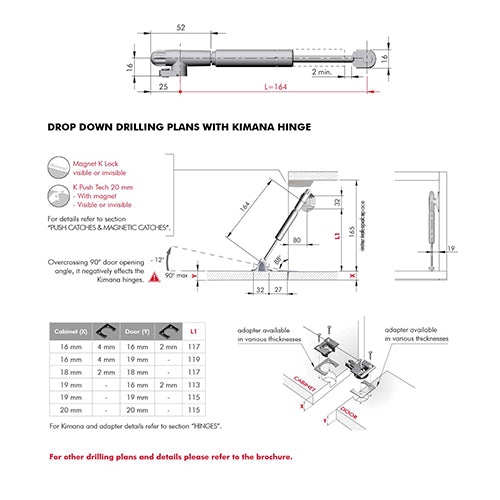

  • L164
  • L244

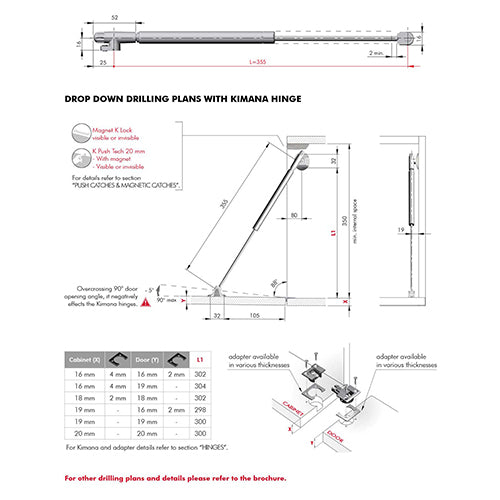

  • L355

Detail:

Area of application
For stay Drop Down front panels made from wood or Aluminium frame
Material
Zink Alloy, Steel
Colour/finish
Metallic Beige
Leght
L164, L244, L355
For door height
L164 = 200-284 mm
L244 = 280-500 mm
L355 = 380-600 mm

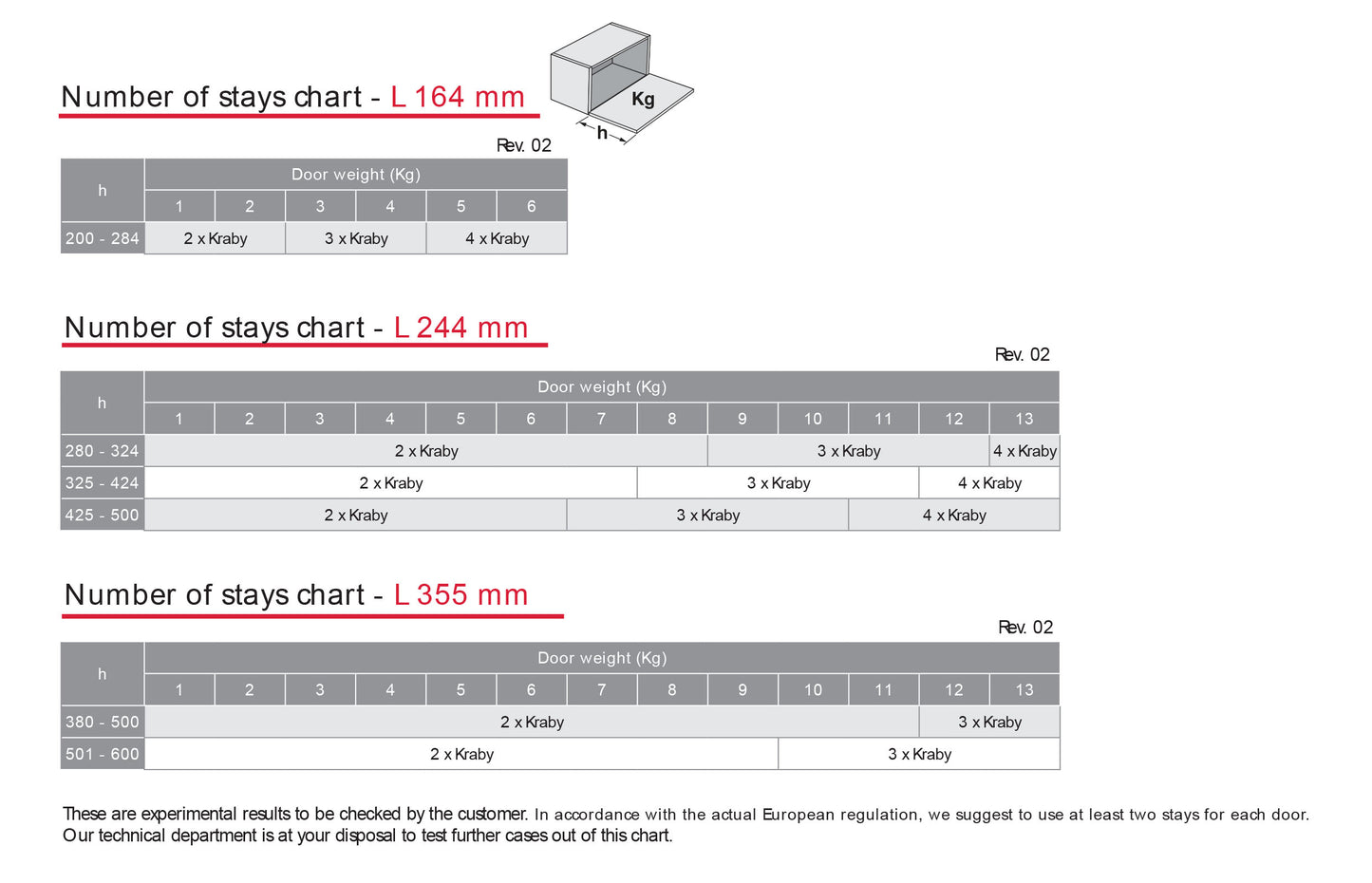

For door Weight
L164 = 1-6 Kg
L244 = 1-13 Kg
L355 = 1-13 Kg
Bracket
right and left hand use



Set Comprises:

  • L164

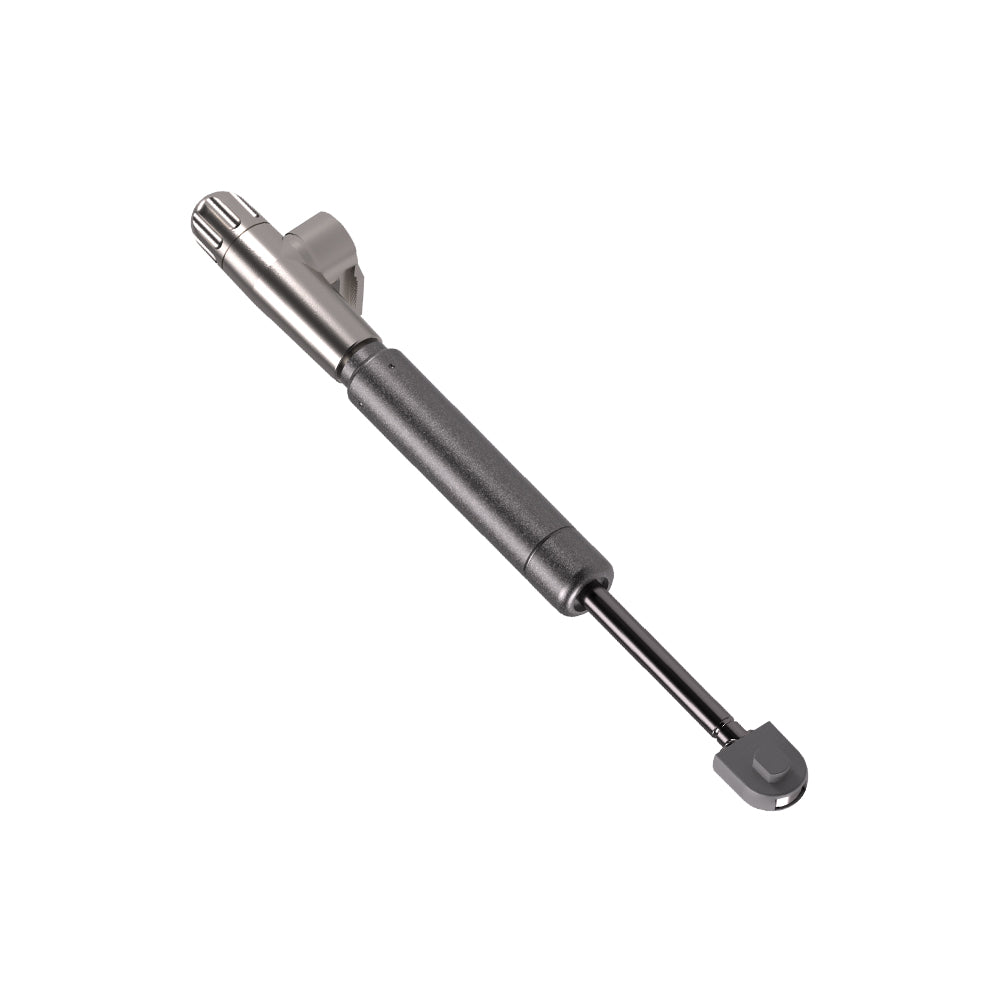

    • 2pcs  42201010UZ A KRABY DROP DOWN STAY L164MM T-MET
    • 2pcs  42918010YC  DOOR S PPORT OR LID STAY K
    • 2pcs  42901030YC Side bracket KRABY Nk screw holes fixing
    • 2pcs  4291901000 Plastic cover for door support
  • L244
    • 2pcs  42210010NN A KRABY DROP DOWN STAY L164MM T-MET
    • 2pcs  42918010YC  DOOR S PPORT OR LID STAY K
    • 2pcs  42901030YC Side bracket KRABY Nk screw holes fixing
    • 2pcs  4291901000 Plastic cover for door support
  • L355
    • 2pcs  42230010NN A KRABY DROP DOWN STAY L164MM T-MET
    • 2pcs  42918010YC  DOOR S PPORT OR LID STAY K
    • 2pcs  42901030YC Side bracket KRABY Nk screw holes fixing
    • 2pcs  4291901000 Plastic cover for door support



Download

BROCHURE INSTALLATION MANUAL INSTALLATION VIDEO
