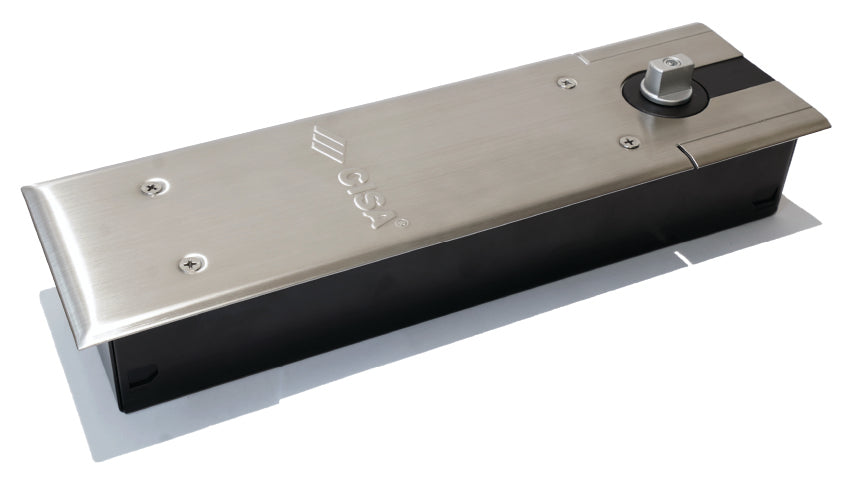

CISA - Floor Hinge F8500

CISA - Floor Hinge F8500

Regular price Rp 8.484.000
Regular price Sale price Rp 8.484.000
Sale Sold out
Type

The CISA F8500 floor springs are designed to handle different door types weighing up to 300kg, making them suitable for harsh weather conditions and high-traffic environments such as hospitals, shopping centers, and buildings with fire-resistant glass doors. These floor springs are constructed with robust materials and meet the ANSI Grade 1 standards, ensuring their strength and dependability.

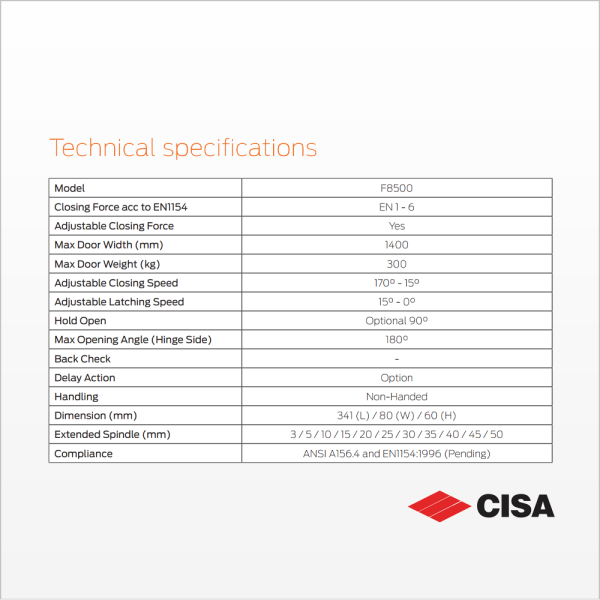

Detail:

Closing Force acc to EN1154
EN1-6
Door Width
Max 1400mm
Door weight
Max 300 Kg
Closing force
yes
Adjustable closing speed
170°-15°
Adjustable latching speed
15°-0°
Hold open
90°
Opening angle
180° (Hinge side)

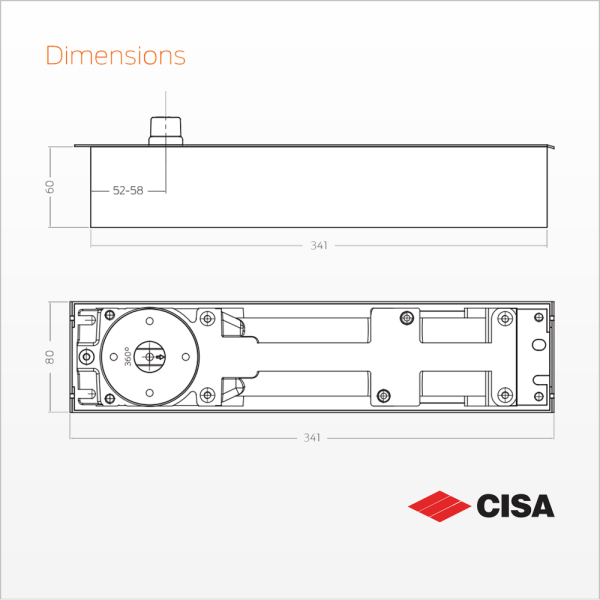

Dimension
L 341mm W 80mm H 60mm
