ITALIANA - Libra H7

LIBRA H7 is a strong and versatile cabinet hanger especially designed for wall-mounted cabinets with heavy loads or particularly deep drawers. It is the ideal choice for vanity, kitchen or bathroom cabinets, or commercial display projects.

The main benefits of LIBRA H7 are the following:

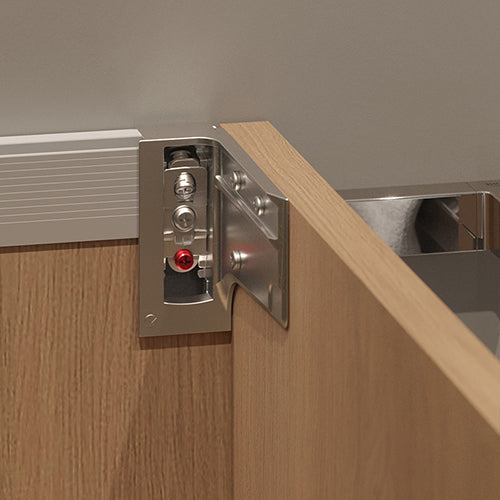

• Vertical and in-depth adjustments, with integrated locking of the cabinet, can be easily and smoothly carried out from the inside;
• The hanging system is never interfering with the slides for drawers thanks to the slim side bracket wings. Therefore also the use of tools is very easy and comfortable as there is plenty of space between the side and the screwdriver.
• Absolutely no mills, nor grooves are required on the side panels.

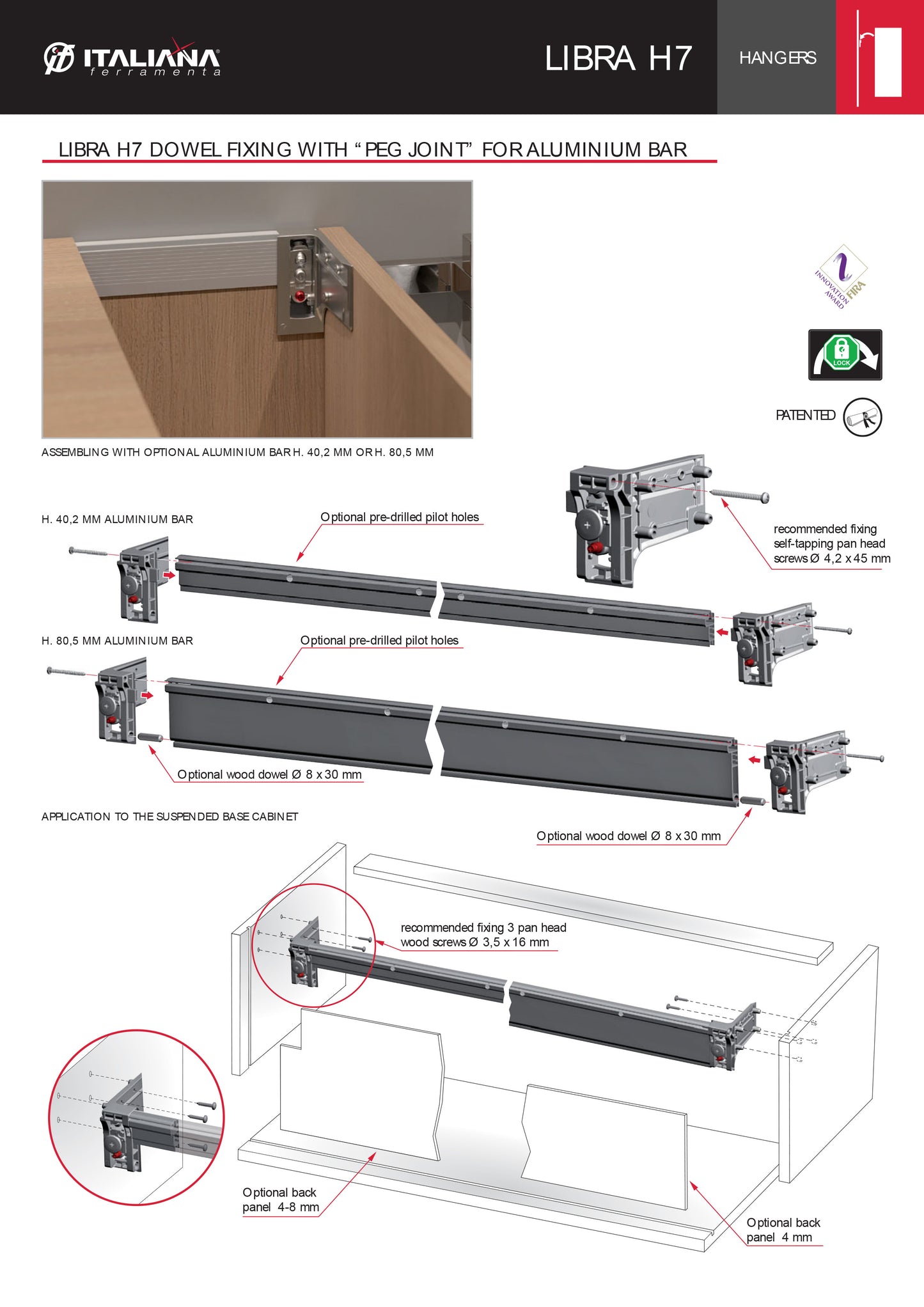

Set Comprises:

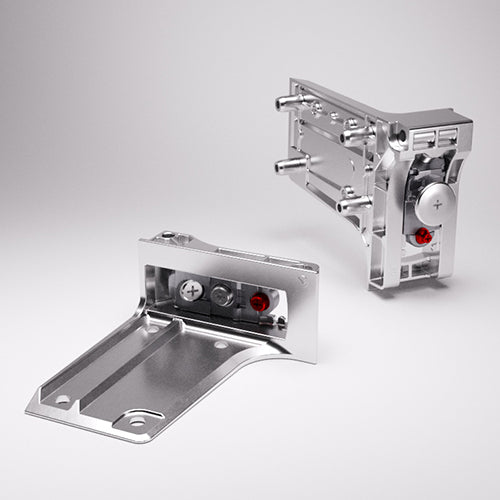

1 pcs 63422200ZN - LIBRA H7 dowel fixing  right Zk

1 pcs 63422210ZN - LIBRA H7 dowel fixing left Zk

1 pcs 67XXXXXXXX - LIBRA H7 aluminium bar

6 pcs 60203540ZN - Self Tapping Screw Diam 4.2x45 mm Pan Head ZK

1 pcs 63450050ZN - WP5 wall plate to be split in two pcs Zk
