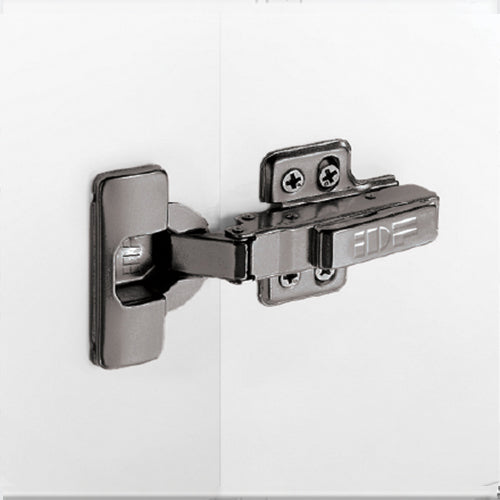

IDF - Titania Hinge Standard 105° (isi 2pcs)

IDF - Titania Hinge Standard 105°

IDF hinges ensure that the door closes quietly, thanks to the soft-close feature, which is integrated into the hinge cup. The IDF soft-close feature is designed to adapt to the dynamics of any door, ensuring a smooth and consistent closing action regardless of the size, weight or style used. CLIP technology enables quick and easy installation and adjustment of the door in three dimensions.
titania series idf hinges utilize a titanium coating that makes the hinges resistant to rust.

Specification:

• Opening angel 105°
• Door Thickness of 16-28 mm
• Integrated soft closing
• Diameter of hinge cup Ø35mm
• Dept of hinge cup 12 mm
• Small soft close
• Better corrosion resistent
• Material iron with nickel plating
• Finishing Titanium plating
• It has been certified in a 72+hour salt spray corrosion resistance test
• Lifecycle = Lifetime


Set Comprises:

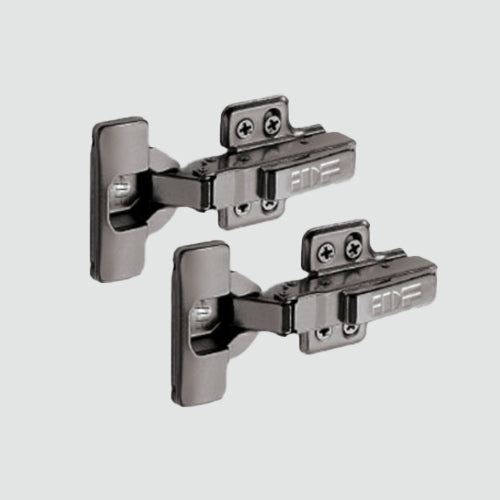

• 2 pcs Standard soft close hinge 105°
• 2 pcs Mounting plate 4 Hole H=0
• 2 pcs Cover cap arm
• 2 pcs Cover cap head
• 12 Wood screw
