CISA

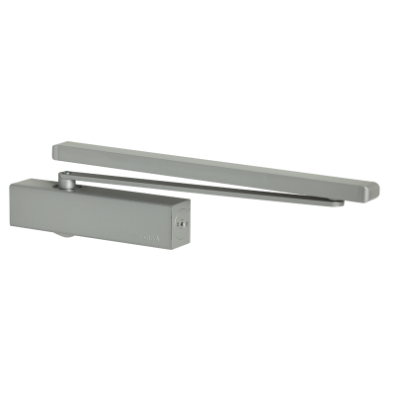

CISA - D6200 cam action door closer

CISA - D6200 cam action door closer

Regular price Rp 6.272.000
Regular price Sale price Rp 6.272.000
Sale Sold out

The D6200 door closers are compact, efficient, versatile, and easy to customize. They can be installed in various ways and offer easy access for adjusting closing speed and latch action.

Detail:

TECHNICAL FEATURES

  • One-piece body with sliding cover

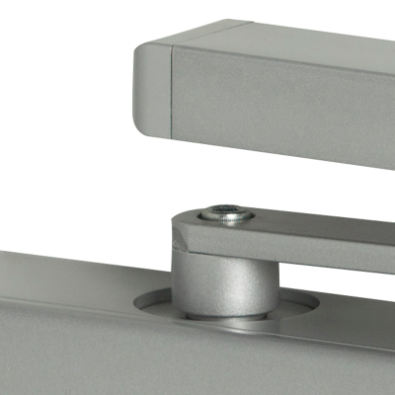

  • Steel sliding arm with or without hold open device
  • Cam operation reduces the force needed when opening the door.
  • The CE version (EN3) can be installed on fire doors up to 950 mm and weighing up to 60 Kg.

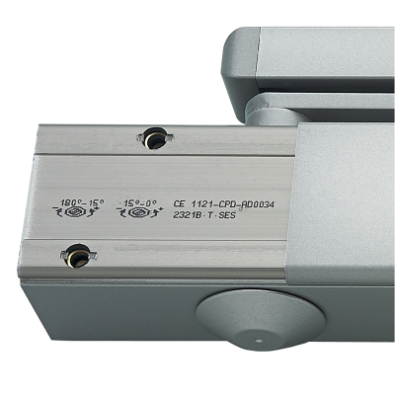

  • Adjustment valves with thermostatic device

ADJUSTMENTS

  • Adjustable closing force EN 2-4.
  • Adjustable closing speed from 120˚ to 7°.
  • Adjustable final latch action in the end section (7°) to overcome seals and latchbolts.
  • Adjustable backcheck to prevent damage the door, hardware and the adjacent walls, due to an excessive pushing force when opening the door. The opening angle can be adjusted from 70° to 180°.
  • Adjustable mechanical hold open device from 80˚ to 120˚

FINISHES

Standard

  • Fin. 97 Aluminium

View full details
