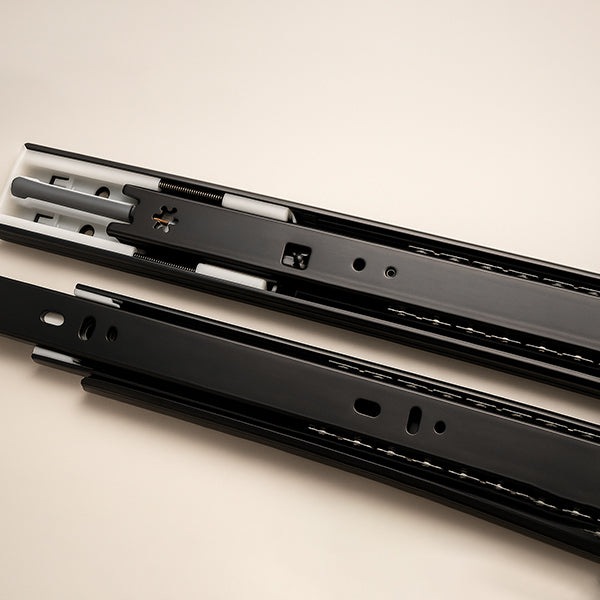

DTC - Runner Super Rail Ball Bearing Slide Full Extension Integrated Soft Close

Improving on a Successful Product

Adding soft-close mechanisms to ball bearing slides requires precise manufacturing techniques, and to that extent, DTC’s previously successful ball-bearing slide program was enhanced to assure consistent build quality.

Applications

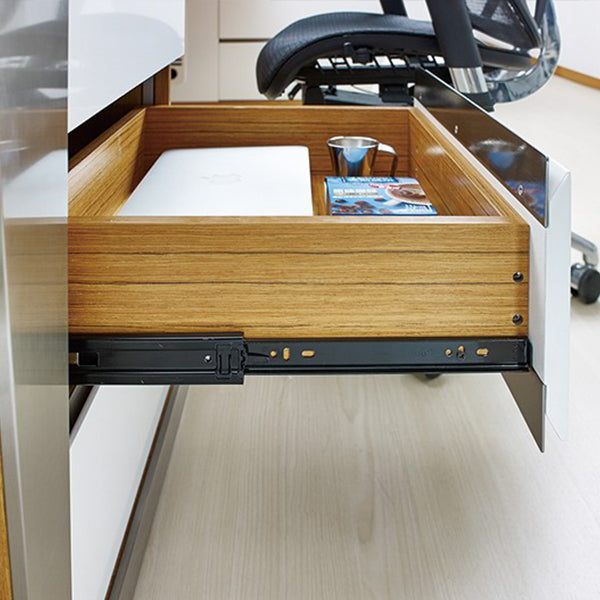

Residential, as well as office, cabinets and furniture are all candidates for full-extension drawers with soft-close convenience. Super-Rail slides are available in 50mm length increments from 250mm to 600mm with 45kg (99 lb) capacity.

Integrated Soft-Close

The damper is stabilized with two long springs to create a controlled smooth motion even with severe closing forces.

Reset Device Feature

Even if the soft-close mechanism is accidently triggered, installation is hassle-free due to the reset design of the catch device.

Specification:

• Load capacity 45kg
• Finish Black(D01)
• Lengths 250-500mm
• Full extension
• Soft close
• Single way travel
